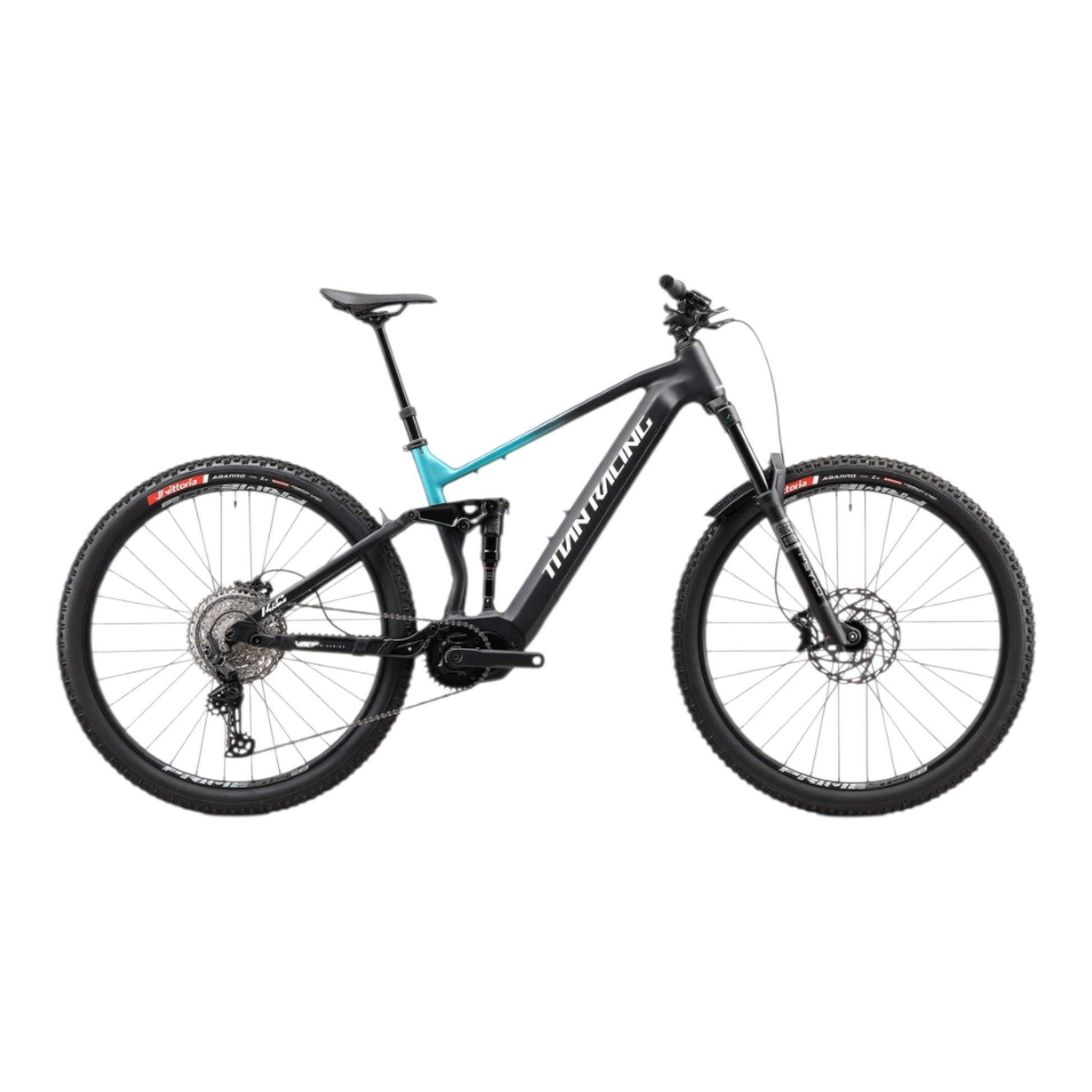

Titan Racing Volt E-Two 29"
Titan Racing Volt E-Two 29"
Couldn't load pickup availability
Technical Specifications
| Specification | Details |
|---|---|
| Wheel Size | 29" |
| Frame | VOLT 4-Bar Horst Link Alloy Frameset with Integrated Battery |
| Frame Sizes | S / M / L / XL |
| Suspension | Full Suspension |
| Fork | RockShox Psylo Silver RC DebonAir 29" – 150mm Travel |
| Motor | Ananda TR M230 – 350W / 100Nm |
| Pedal Assist | Up to 32km/h |
| Battery | Greenway – 630Wh Integrated Battery |
| Display | Ananda D18 TFT Display |
| Controller | Ananda D18 |
| Drivetrain | Shimano Deore – 12-Speed |
| Shifter | Shimano Deore SL-M6100 – 12-Speed |
| Rear Derailleur | Shimano Deore RD-M6100 – 12-Speed |
| Cassette | Shimano Deore CS-M6100 – 10T–51T |
| Chain | Shimano CN-M6100-12 |
| Chainring | Ananda EP01A – 34T |
| Crank | Ananda EC38-F5 ISIS – 165mm |
| Front Brake | Tektro M530 4-Piston Hydraulic Disc – 203mm Rotor |
| Rear Brake | Tektro M530 2-Piston Hydraulic Disc – 180mm Rotor |
| Rims | Prime SL 27 TLR – 32H |
| Front Hub | Novatec |
| Rear Hub | Shimano Deore |
| Tyres | Vittoria Agarro – 29" × 2.4" |
| Handlebar | TR Pro Alloy Riser Bar – 780mm |
| Stem | TR Pro Alloy Stem |
| Grips | TR Slidelock |
| Seat Post | X-Fusion Manic Remote Dropper – 34.9mm |
| Saddle | SR A084HR0018014 |
| Headset | FSA No.57-HBS / No.57-ACB |
| Pedals | PP Body / Steel Cage |
A high-performance 29" full-suspension electric mountain bike engineered for demanding trails, technical terrain and serious off-road riding. The VOLT alloy frame features a 4-bar Horst Link suspension platform with an integrated 630Wh battery, creating a clean and capable e-MTB package.
Power comes from the Ananda TR M230 motor, delivering 350W and an impressive 100Nm of torque, with assistance up to 32km/h. The Greenway 630Wh battery provides the capacity needed for longer adventures, while the Ananda D18 TFT display keeps essential ride information easily accessible.
The Shimano Deore 12-speed drivetrain features a wide-range 10–51T cassette, providing excellent gearing for steep climbs and technical trails. A RockShox Psylo Silver RC DebonAir 150mm fork adds serious front-end capability, while the X-Fusion Manic remote dropper post allows riders to quickly adjust their riding position on changing terrain.
Braking is handled by a powerful Tektro setup with a 4-piston front brake and 203mm rotor, complemented by a 2-piston rear brake with 180mm rotor. Wide Vittoria Agarro 29 × 2.4" tyres complete the trail-focused package with dependable traction and control.
