Titan Racing Volt E-One A 140mm Ripper
Titan Racing Volt E-One A 140mm Ripper
Couldn't load pickup availability
Technical Specifications
| Specification | Details |
|---|---|
| Wheel Size | 29" |
| Frame | VOLT 4-Bar Horst Link Alloy Frameset with Integrated Battery |
| Frame Sizes | S / M / L / XL |
| Suspension | Full Suspension |
| Fork | Swoop GTMRK 830-E 29" – 150mm Travel |
| Motor | Ananda TR M230 – 350W / 100Nm |
| Pedal Assist | Up to 32km/h |
| Battery | Greenway – 630Wh Integrated Battery |
| Display | Ananda D18 TFT Display |
| Controller | Ananda D18 |
| Drivetrain | Shimano CUES – 10-Speed |
| Shifter | Shimano CUES SL-U6000-10R |
| Rear Derailleur | Shimano CUES RD-U6000 |
| Cassette | Shimano CUES CS-LG300-10 – 11T–48T |
| Chain | Shimano CUES CN-LG500 – 10-Speed |
| Chainring | Ananda EP01A – 34T |
| Crank | Ananda EC38-F5 ISIS – 165mm |
| Brakes | Tektro M280 2-Piston Hydraulic Disc Brakes |
| Rotors | 180mm Front / 180mm Rear |
| Rims | Prime SL 27 TLR – 32H |
| Hubs | Novatec Front & Rear |
| Tyres | Innova Pro Podium – 29" × 2.4" |
| Handlebar | TR Pro Alloy Riser Bar – 780mm |
| Stem | TR Pro Alloy Stem |
| Grips | TR Slidelock |
| Seat Post | X-Fusion Manic Remote Dropper – 34.9mm |
| Saddle | SR A084HR0018014 |
| Pedals | PP Body / Steel Cage |
| Headset | FSA No.57-HBS / No.57-ACB |

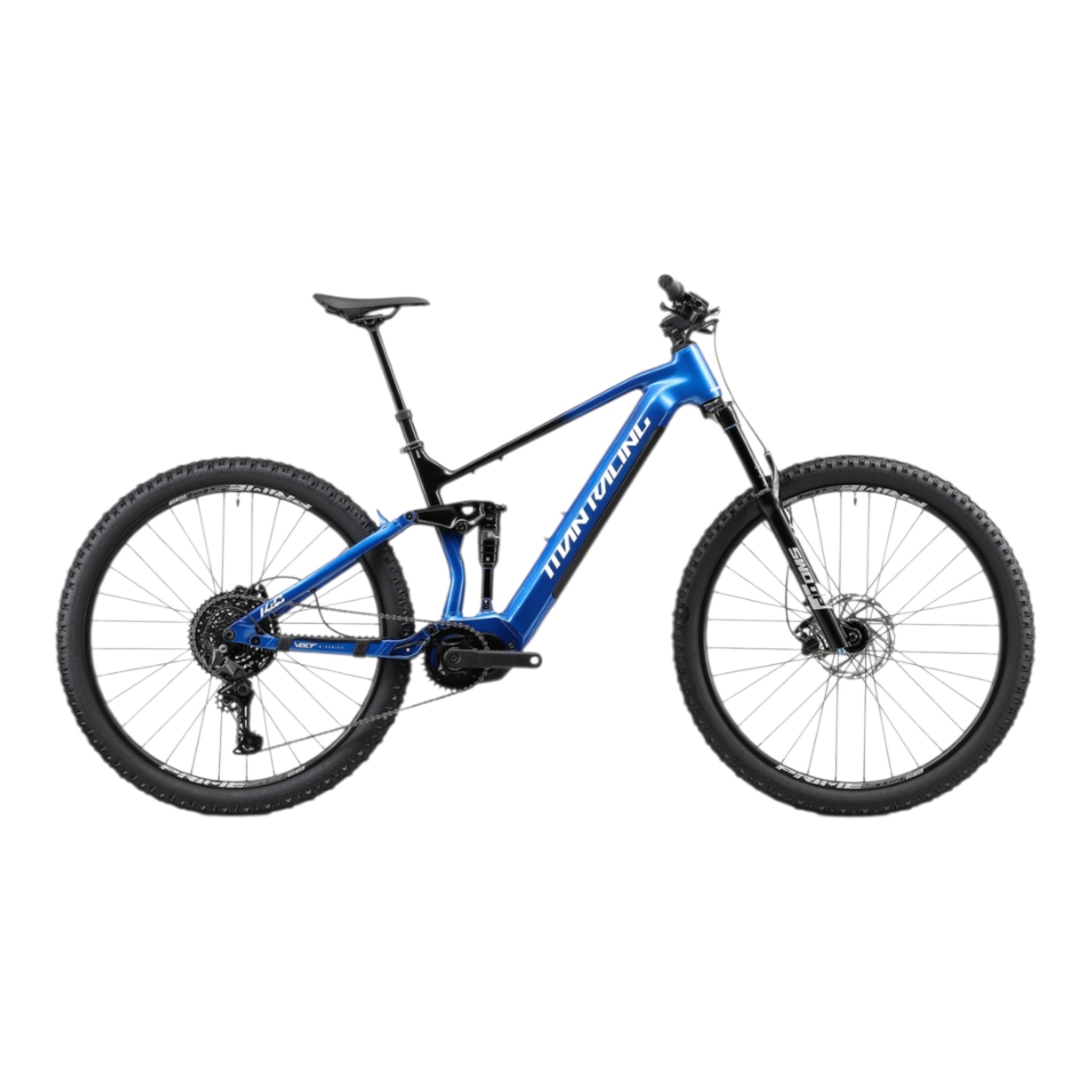

A performance-focused 29" full-suspension electric mountain bike built for riders looking for serious trail capability with powerful electric assistance. The VOLT alloy frame uses a 4-bar Horst Link suspension platform and integrated 630Wh battery for a clean, purpose-built e-MTB setup.
At its heart is the Ananda TR M230 motor, delivering up to 350W and 100Nm of torque with assistance up to 32km/h. Combined with the high-capacity Greenway 630Wh battery and Ananda D18 TFT display, the system provides powerful assistance for demanding climbs and longer trail rides.
A Shimano CUES 10-speed drivetrain with a wide-range 11–48T cassette provides gearing suited to steep and technical terrain. The 150mm Swoop suspension fork, wide 29 × 2.4" Innova Pro Podium tyres and X-Fusion Manic remote dropper post further enhance its trail capability.
Tektro M280 2-piston hydraulic disc brakes with 180mm rotors front and rear provide confident stopping control to match the bike's performance.
